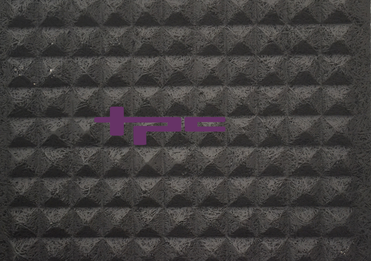

3D Pyramid Panels
Thermofriz Pyramid 3D Panels are manufactured with the help of hi-tech Austrian technology & are specifically designed for high sound absorption. Thus, making them apt to be installed in various studios & other places where sound proof working environment is required. Our product is competitively priced, easy to install, durable and long lasting in nature, and available with us in 1.22m × 0.61m × 38mm

Installation Specifications for Walls

Can be installed on GI metal/ Wooden/ MS frame of 50 x 50mm making a grid of 610 x 610mm c/c. The frame is to be made in proper line after leveling. The panels will be backed with 50mm Sentetic Wadding 1000 GSM inserted inside the grid of 610 x 610mm.

 Installation Specifications for Ceiling

Can be installed making grid of size 600 x 600mm c/c of G.I pre coated system using Main T 34 x 24 & Cross T 24 x 24 & wall angles suspended suitably by dash fastners, GI wire & suspension clip & MS cleats. A layer of 50mm Sentetic Wadding 1000 GSM to be used over false ceiling for best results.

Specifications

Std. Size: 1220mm × 610mm
Other Size: 1200mm × 600mm; 915mm × 610mm; 600mm ×600mm; 595mm × 595mm
Thickness in mm: 38
Density in kg/cuM: 400, 450, 600, 800

Technical Specifications

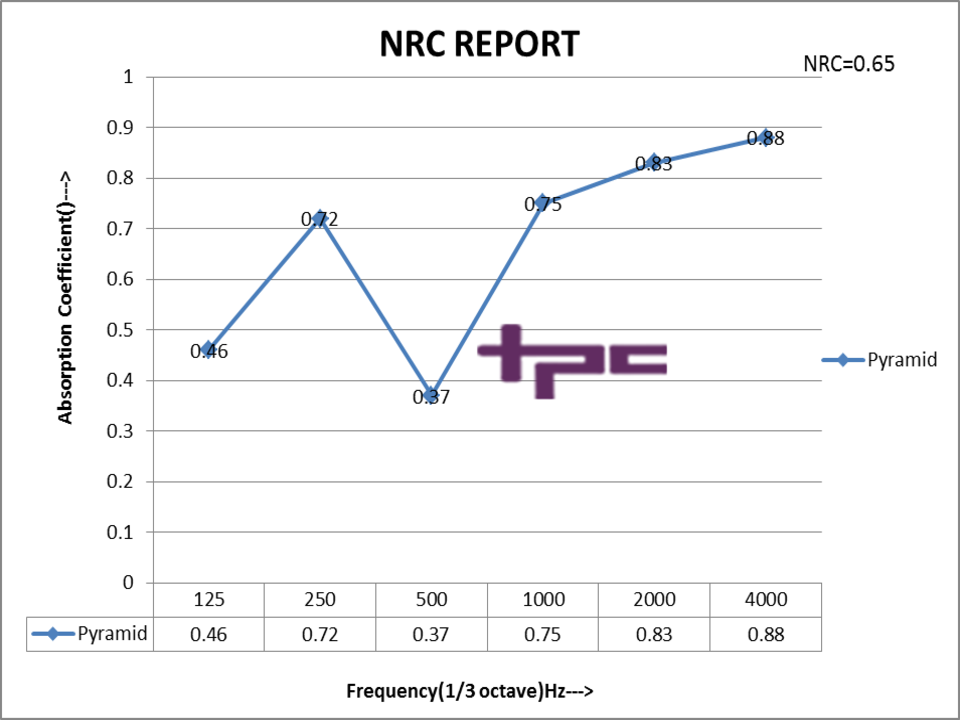

Providing & fixing Thermofriz  Acoustic “Pyramid 3D” Panels made from wood fibers mineralized with magnesite composite many thickness and is of multi-colour. Highly recommend for interiors for heat and sound, has excellent sound result as per ISO: 354 -1985 & ASTM 423-90a. Thermofriz wood wool boards are made as per IS: 3308, BS: 1105 & DIN: 1101. These board are not easily ignitable for which we have a fire test done under BS: 476 Part 5, 6, 7. Weather Test Cycle (B) IS: 9307 Part 7- 1979. Thermal Conductivity Test under BS: 874-1965.

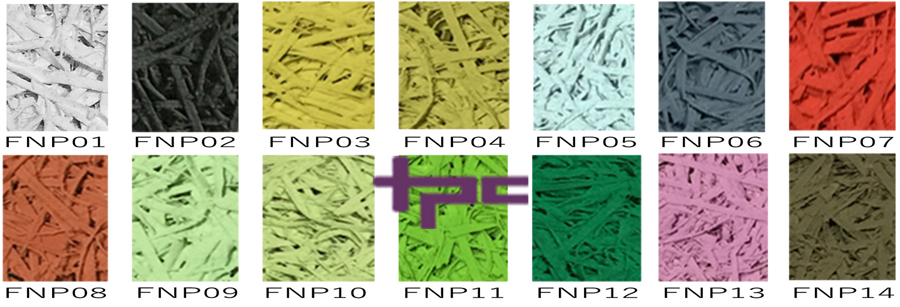

Different colours of Natural Panels:
