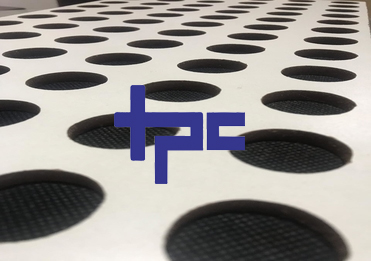

TPC Macro Hole MDF
Application:
Providing and fixing TPC Macro Hole wood based MDF panels with linear perforations. The panels shall be surface FR grade B1 with melamine laminate in any size having density of 800kg/m3. The back of the panels are perforated with 30mm diameter circular holes with black acoustic fleece covering back for providing Sound absorption. Panel will be fixed with mounting kit on screw fixed at every 300mm c/c horizontal / vertical to G.I metal cross section [0.5mm thick] of 50 x 50mm which will be screw fixed to wall in proper line & level. Panel will be backed with 500/1000GSM Sentetic Wadding.
Specifications
|
Size: |
2440 x 1220 x 8mm; 1200 x 1200 x 8mm; 1200 x 600 x 8 mm. |
|
Thickness in mm: |
30 mm thick Circular Pin hole |
- Melamine Finish
- Fire Retardant
- Eco Friendly
- Termite proof
